Cleanroom MGO panels are durable, fire-resistant, and moisture-proof, making them ideal for controlled environments in industries like pharmaceuticals, biotechnology, and electronics.
Length：can be customized,less than 12m
Density：24kg/㎡
Color：Ral Standard
Temp tolerance：1500℃
Hydrophobic rate：≥97.5%
Fire resistance level :A (>70 minutes)
Compression bearing：22Mpa(GB/T7019-1997)
The shrinking rate when heated：1.0%(GA160-1997)
The rate of deformation when pick up the moisture：0.26%(GA160-1997)
Our professional team will provide you with customized cleanroom MGO Cleanroom Panel system solutions to meet your specific needs.
In simple terms, both are MGO cleanroom panels, but they’re made in different ways and used for slightly different project needs:
Cleanroom MGO sandwich panel
Better for large, standard modular cleanrooms: lower labor cost per m² and faster installation.
Cleanroom MGO handmade panel
Better for custom rooms, retrofits, special openings or where you need many non‑standard pieces.
How to choose?
Big project, standard layout, tight schedule → usually Cleanroom MGO sandwich panel.
Lots of special details, many windows/doors, renovation work → often Cleanroom MGO handmade panel is more practical.
If you share your layout and cleanroom class, we can recommend which MGO cleanroom panel type fits best and show test reports supporting ISO / GMP expectations.
Cleanroom MGO Panel walls and ceilings help meet GMP and ISO 14644 with smooth, non‑absorbent surfaces, reliable fire performance and easy cleaning in filling, compounding and packaging areas.
In assembly and testing rooms, Cleanroom MGO Panel systems control particles and are easy to re‑configure, supporting frequent line upgrades and validation changes.
For ISO 7–8 cleanrooms and support zones, ESD‑friendly Cleanroom MGO Panel partitions offer flat, low‑particle surfaces and tight joints, reducing hidden dust traps around sensitive equipment.
Moisture‑resistant Cleanroom MGO Panel walls perform well in wash‑down zones, resisting swelling, mold and frequent chemical cleaning in processing, filling and packaging areas.

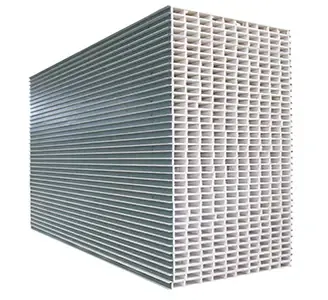

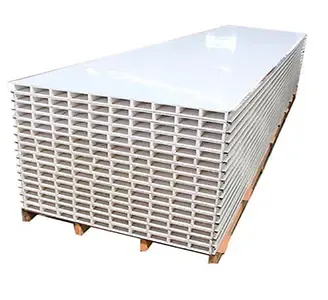

Where corrosion and solvents are a concern, we use tailored Cleanroom MGO Panel options, like one‑side SS304 plus one‑side painted steel, or film‑coated surfaces to balance durability and cost.
Fire‑rated Cleanroom MGO Panel systems provide non‑combustible, dimensionally stable partitions to support strict humidity control and safety demands in coating, cell assembly and formation areas.
From clean corridors to negative‑pressure rooms, Cleanroom MGO Panel walls give robust, easy‑wipe surfaces that support infection control and frequent disinfection routines.
To start, simply select a manufacturing process and upload a 3D CAD file.
Within a few hours we'll send you design for manufacturability (DFM) analysis and real-time pricing.
Once you review your quote and place your order, we'll start the manufacturing process. We also offer finishing options.
Our digital manufacturing process allows us to produce parts in as fast as 1 day.
Deiiang is a professional supplier and manufacturer of cleanroom building materials, providing you with one-stop integrated solutions for cleanroom building materials.
Send inquiry Now

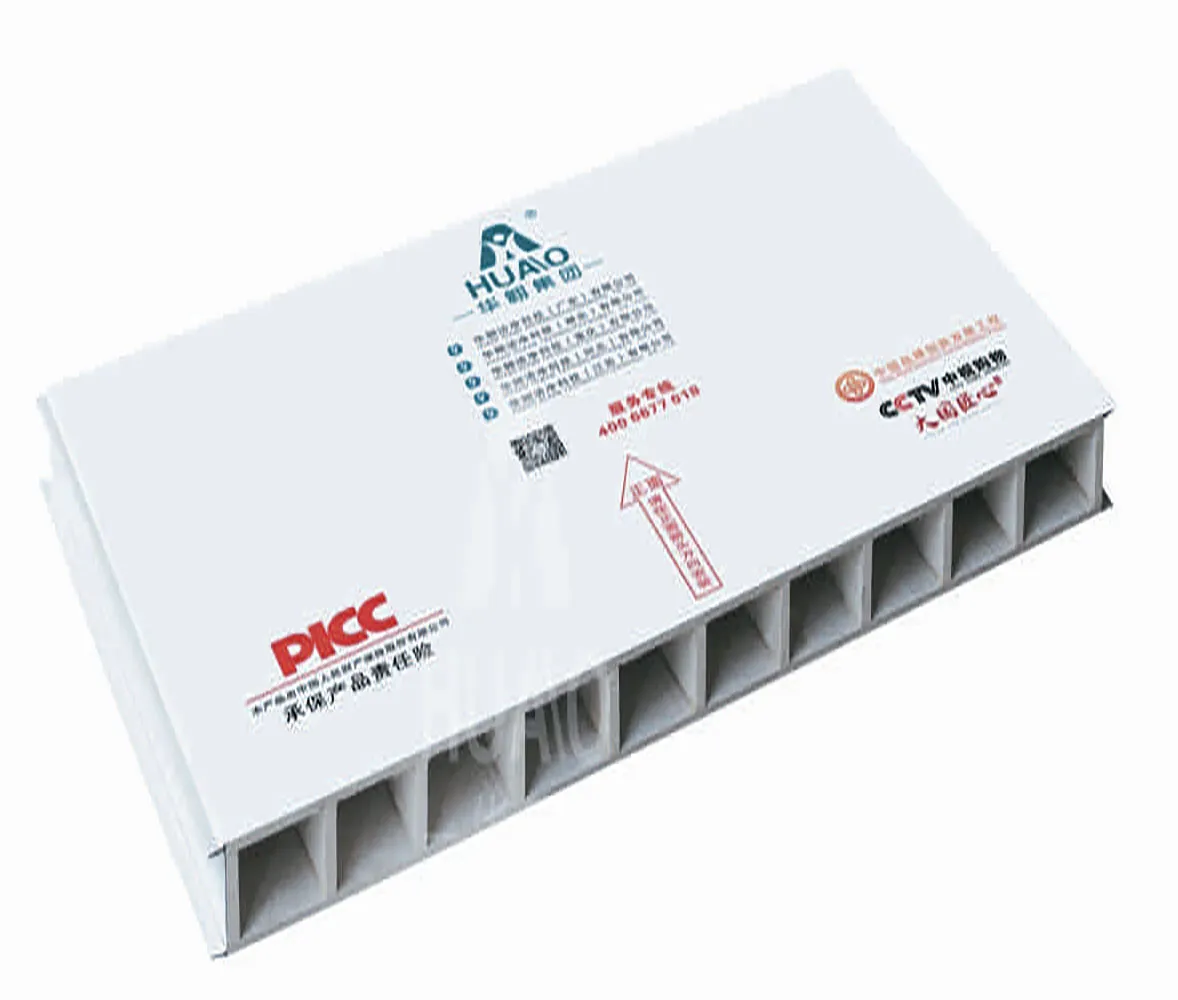

An MGO Cleanroom Panel is a prefabricated sandwich panel based on magnesium oxide (MGO) boards, designed for cleanroom walls and ceilings. Compared with traditional gypsum or masonry, it offers better fire resistance, moisture resistance and dimensional stability.
You’ll usually see MGO Cleanroom Panels in pharmaceutical GMP plants, electronics cleanrooms, medical device workshops and food processing facilities, where ISO 14644 and related hygiene or quality standards are required.
For most international projects, an MGO Cleanroom Panel should support compliance with:
ISO 14644‑1 / 14644‑2 for cleanroom classification and monitoring
Relevant GMP guidelines (e.g. EU GMP, FDA cGMP, WHO TRS) in pharma and biotech
Fire standards such as ASTM E84, EN 13501‑1 or local building codes
Optional tests for VOC / low emission and surface cleanability
At Deiiang, our technical team can provide test reports and certificates so your QA, validation and safety teams can easily review whether an MGO Cleanroom Panel system fits your project’s regulatory framework.
The short answer: stability, fire safety and lifecycle cost.An MGO Cleanroom Panel is less sensitive to moisture than standard gypsum, offers better inherent fire performance, and can be factory‑finished with hygienic coatings. This means fewer deformation issues, lower risk of mold, and more reliable joint quality over time.For B2B users, that usually translates into shorter construction time, fewer repairs and easier compliance with ISO and GMP audits.
Yes, if the full system is designed correctly. An MGO Cleanroom Panel with a smooth, non‑porous surface, sealed joints and proper detailing can be used in higher‑grade areas such as ISO 5–6, depending on your process and airflow design.ISO 14644 focuses on overall system performance, not a single material. We support clients by providing surface data, joint solutions and installation guidelines so the MGO Cleanroom Panel becomes a stable part of your validated envelope.
Magnesium oxide is naturally non‑combustible. Properly engineered MGO Cleanroom Panels can reach high fire classifications such as A1 / Class A, subject to full assembly testing according to standards like EN 13501‑1 or ASTM E119.
Yes, this is one of the big advantages of using an MGO Cleanroom Panel. MGO boards are more stable in humid environments than common gypsum boards and, when combined with a closed‑cell core and sealed coatings, they help reduce the risk of moisture‑related problems.
Of course, you still need good detailing at floor‑wall and wall‑ceiling junctions, plus proper HVAC design. But for wash‑down areas or regions with high ambient humidity, an MGO Cleanroom Panel is usually a safer choice.
