Maintaining ultralow partICulate environments is critical for Semiconductor fabrication yield and product reliability. This document details five essential technical controls for managing 0.1μm particle contamination.
1. Advanced Air Filtration Systems

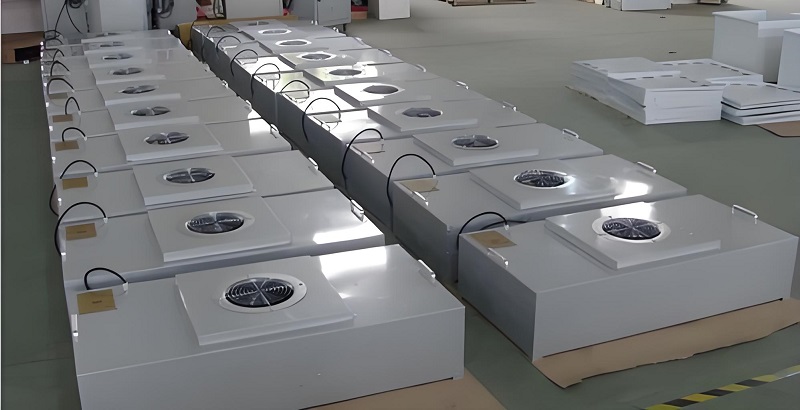

- ULPA Filtration: Implement Ultra-Low Penetration air filters with 99.999% efficiency at 0.12μm, exceeding standard HEPA performance for critical photolithography processes.

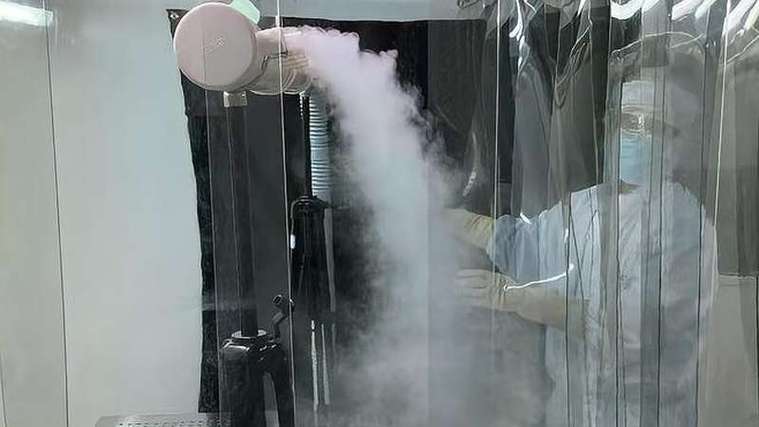

- unidirectional airflow: Maintain vertical laminar flow at 0.45 m/s ±5% with CFD-optimized diffuser placement to minimize turbulence and particle deposition.
- Filter Maintenance Protocol: ｒｅｐｌａｃｅ filters per iso 14644-9 standards with integrity testing every 6 months using PAO/DOP challenge testing.
2. Precision Environmental Controls
- Thermal Stability: Maintain temperature at 21°C ±0.25°C using redundant HVAC systems to prevent thermal drift affecting nanoscale fabrication.
- Humidity Management: Control RH at 45% ±3% with desiccant dehumidifiers to prevent electrostatic discharge (ESD) damage to Wafers.
- Pressure Cascades: Implement 15 Pa minimum pressure differentials between zones with automated monitoring and VAV control systems.
3. Material and Personnel Contamination Control
- Material Certification: Require SMP S-20 compliance certification for all materials entering clean zones with outgassing limits below 5.0×10⁻⁹ g/cm²/min.
- Gowning Protocols: Enforce Class 10 SMP ESD-safe garments with double gloves, face masks, and shoe covers using air showers for decontamination.
- Personnel Training: Conduct quarterly contamination control training with particle count performance metrICs for all fab personnel.
4. Surface and Equipment engineering
- Non-Porous Materials: Install continuous welded vinyl flooring with coved bases and 304 stainless steel wall panels meeting iso class 3 cleanability standards.
- Equipment Design: Utilize radius corners on all surfaces and minimize horizontal planes following SEMI F72-0301 standards for contamination control.
- Modular Integration: Employ SMIF-compatible tool interfaces with mini-environments to maintain isolation during wafer transfer.
5. Continuous Monitoring & Maintenance

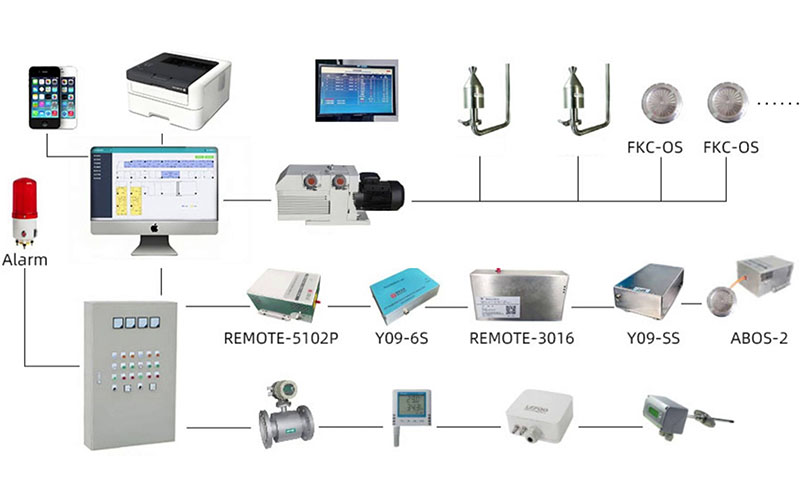

- particle counting: Deploy real-time Laser particle counters with 0.1μm detection capability and 21 CFR Part 11 compliant data logging.
- Cleaning Validation:
- Preventive Maintenance: Implement predictive maintenance schedules using vibration analysis and thermal imaging for critical equipment.
